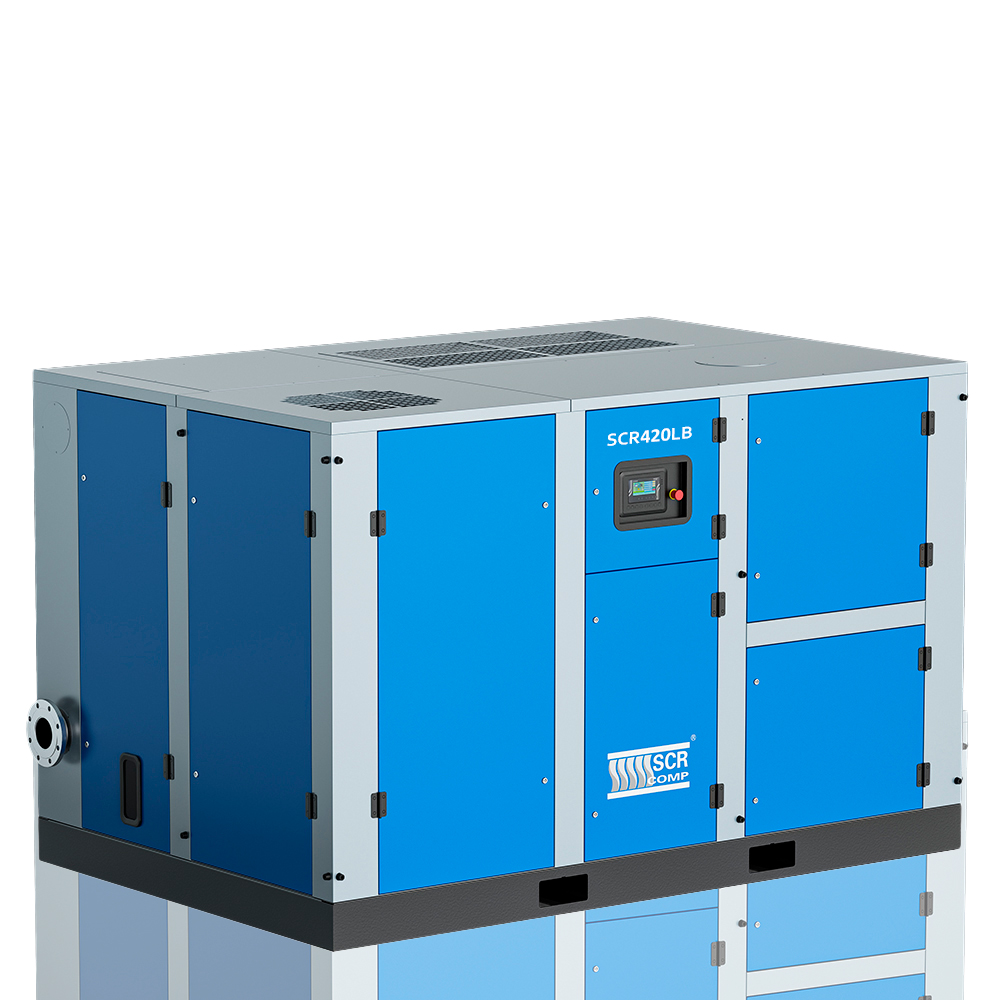

Low pressure Permannent Magnetic VSD screw air compressor SCR420LB
The SCR420LB low pressure screw air compressor is designed to deliver high air flow with excellent energy efficiency for industrial applications requiring stable low-pressure compressed air. The optimized screw airend and advanced control system ensure reliable operation, reduced energy consumption and consistent performance. This compressor is suitable for industries such as cement production, pneumatic conveying, textile manufacturing and other processes requiring continuous low-pressure air supply.
Power range (KW)
37–55 kW
Working pressure
2 / 3 / 4 / 5 bar
Free air delivery
12 m³/min
Technical specification
| Model | Power (KW) | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|
| SCR420LB | 37 | 12 | 2-3 | 2400×1760×1700 | 2400 | DN80 |
| 55 | 4 | |||||
| 5 |
