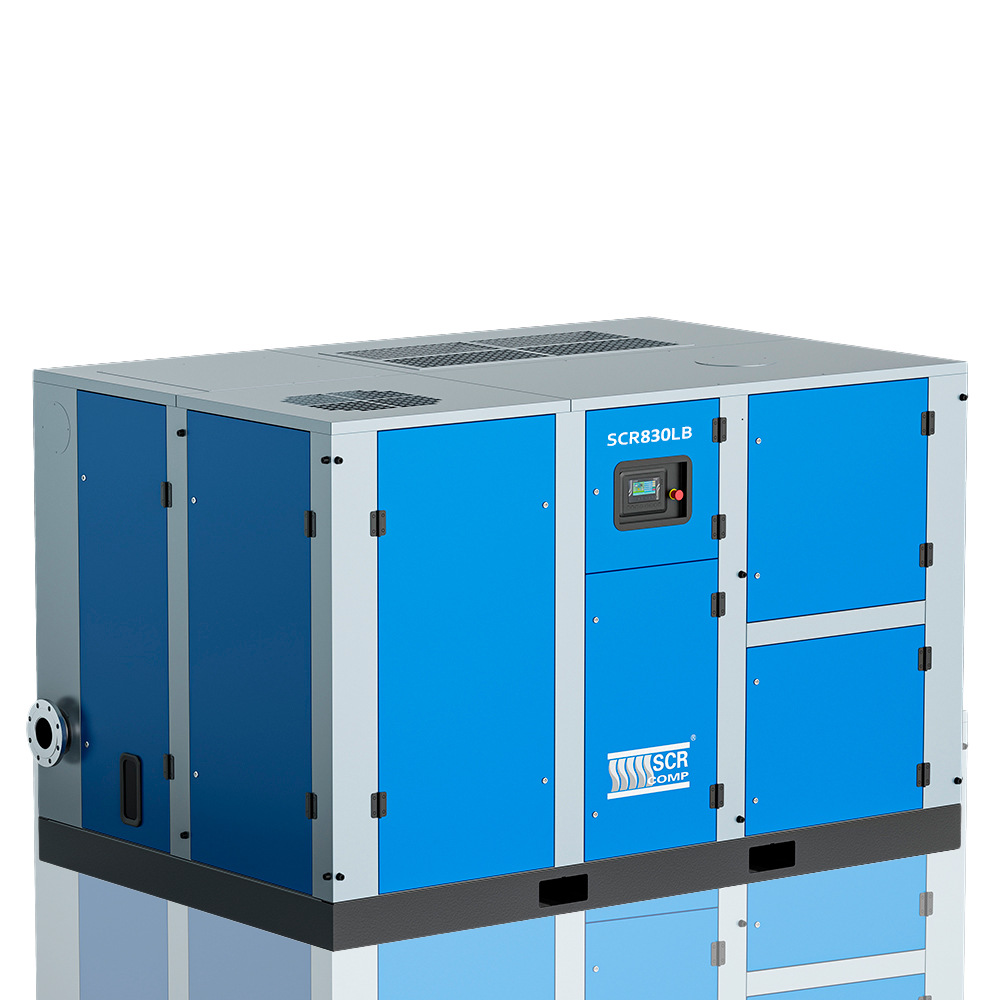

Low pressure Permannent Magnetic VSD screw air compressor SCR830LB
The SCR830LB low-pressure screw air compressor is designed to provide high air flow with excellent energy efficiency for industrial processes requiring stable low-pressure compressed air. The optimized screw airend and advanced control system ensure reliable operation, reduced energy consumption and consistent performance. This compressor is suitable for applications such as pneumatic conveying, cement production, textile manufacturing and other industries requiring continuous low-pressure air supply.
Power range (KW)
63–90 kW
Working pressure
2 / 3 / 4 / 5 bar
Free air delivery
21.5 m³/min
Technical specification
| Model | Power (KW) | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|
| SCR830LB | 63 | 21.5 | 2-3 | 2900×1860×1900 | 2900 | DN100 |
| 75 | 4 | |||||
| 90 | 5 |
