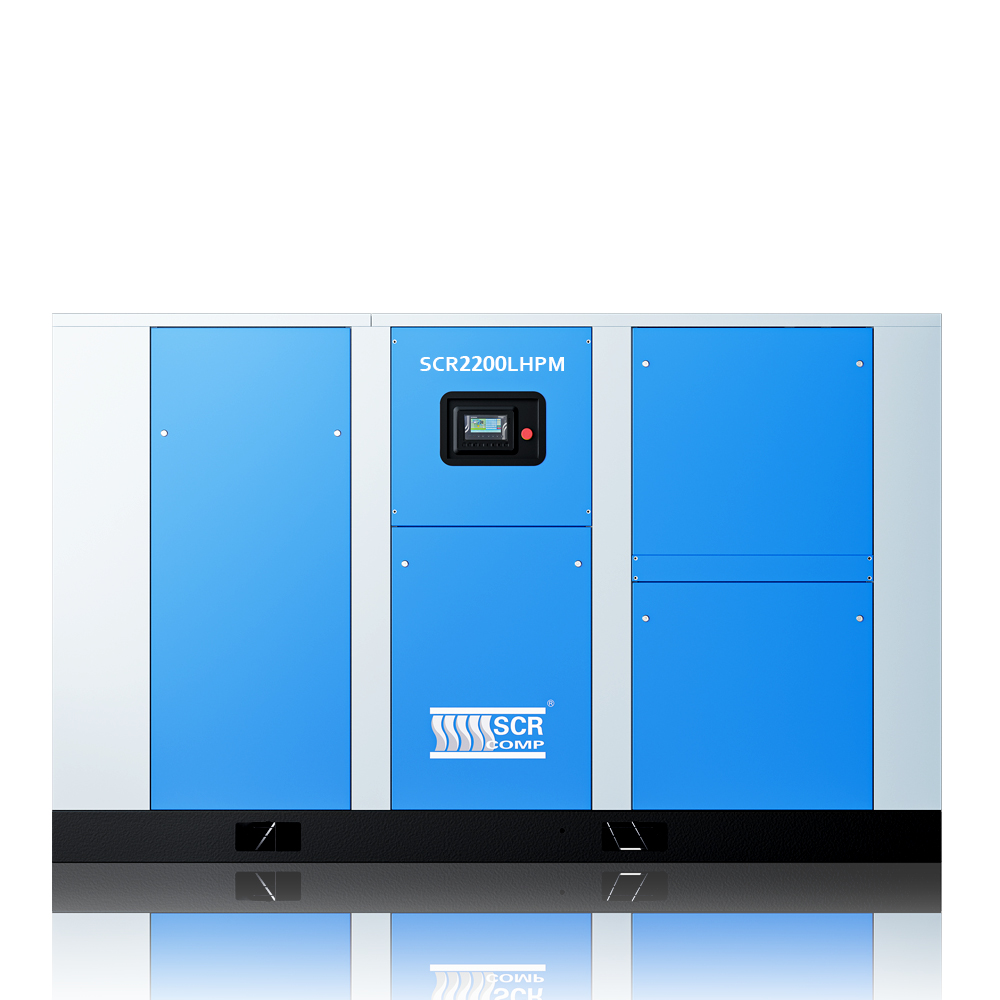

low pressure Two stages screw compressor SCR2200LHPM
The SCR2200LHPM permanent magnet two-stage low-pressure screw air compressor is designed to deliver high air flow with excellent energy efficiency for industrial applications requiring stable low-pressure compressed air. The advanced two-stage compression technology combined with a high-efficiency permanent magnet motor ensures reduced energy consumption, reliable operation and consistent performance. This model is suitable for applications such as pneumatic conveying, textile production, food processing and other industries requiring continuous low-pressure compressed air.
Power range (KW)
250 kW
Working pressure
4.5 / 5.5 bar
Free air delivery
18.6–62.0 m³/min
Technical specification
| Model | Power (KW) | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|
| SCR2200LHPM | 250 | 18.6-62.0 | 4.5 | 3580×2200×2300 | 6500 | DN200 |
| 5.5 |
