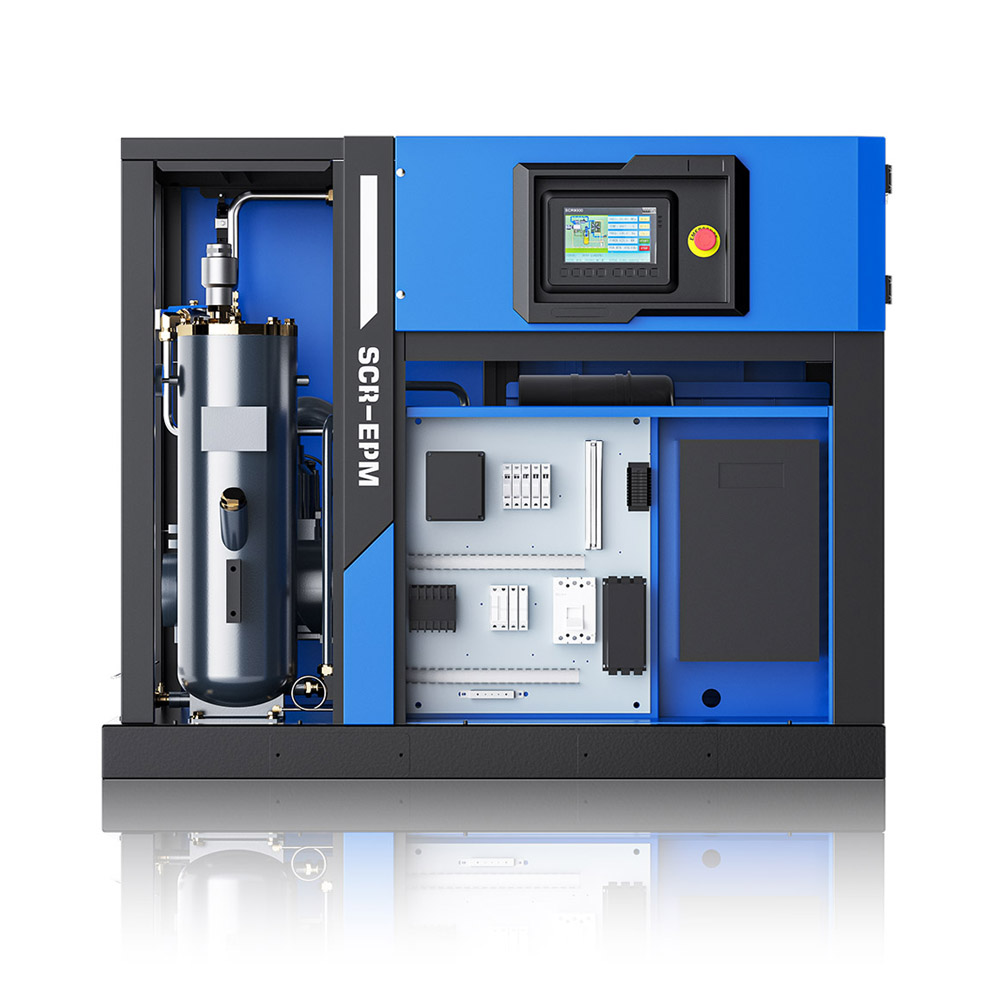

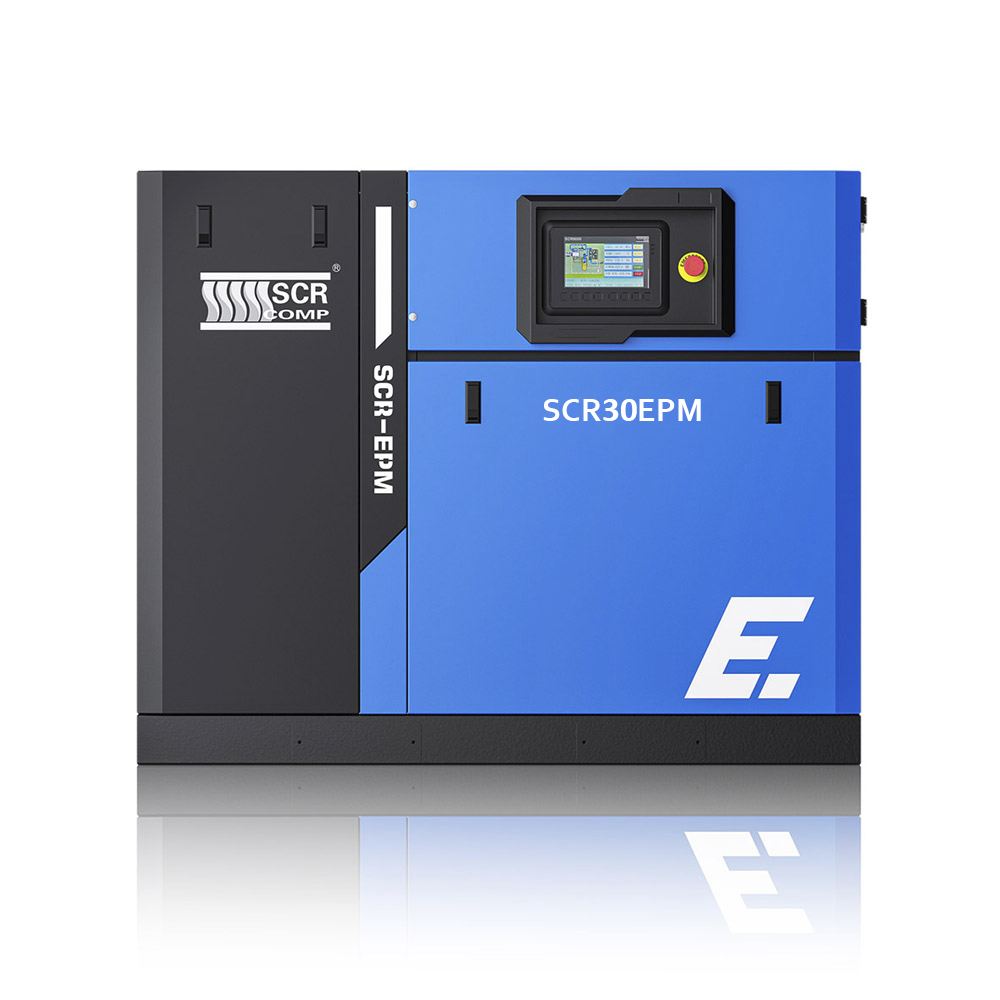

Permanent Magnetic VSD Screw air compressor SCR30EPM
The SCR30EPM permanent magnet variable speed screw air compressor is designed to deliver stable and energy-efficient compressed air for industrial applications. The advanced VSD control system automatically adjusts motor speed according to air demand, reducing energy consumption while maintaining consistent system pressure. This model is suitable for manufacturing facilities, CNC machines, metal processing and automated production lines requiring reliable compressed air performance.
Power range (KW)
15–160 kW
Working pressure
7 / 8 / 10 bar
Free air delivery
0.9–33.5 m³/min
Technical specification
| Model | KW | HP | Capacity (m3/min) | Pressure (BAR) | Dimension (mm) | Weight (KG) | Size |
|---|---|---|---|---|---|---|---|
| SCR30EPM-7 | 22 | 30 | 1.1-4.1 | 7 | 1200×800×1100 | 560 | R1 |
| SCR30EPM-8 | 1.2-4.0 | 8 | |||||
| SCR30EPM-10 | 1.1-3.5 | 10 |
