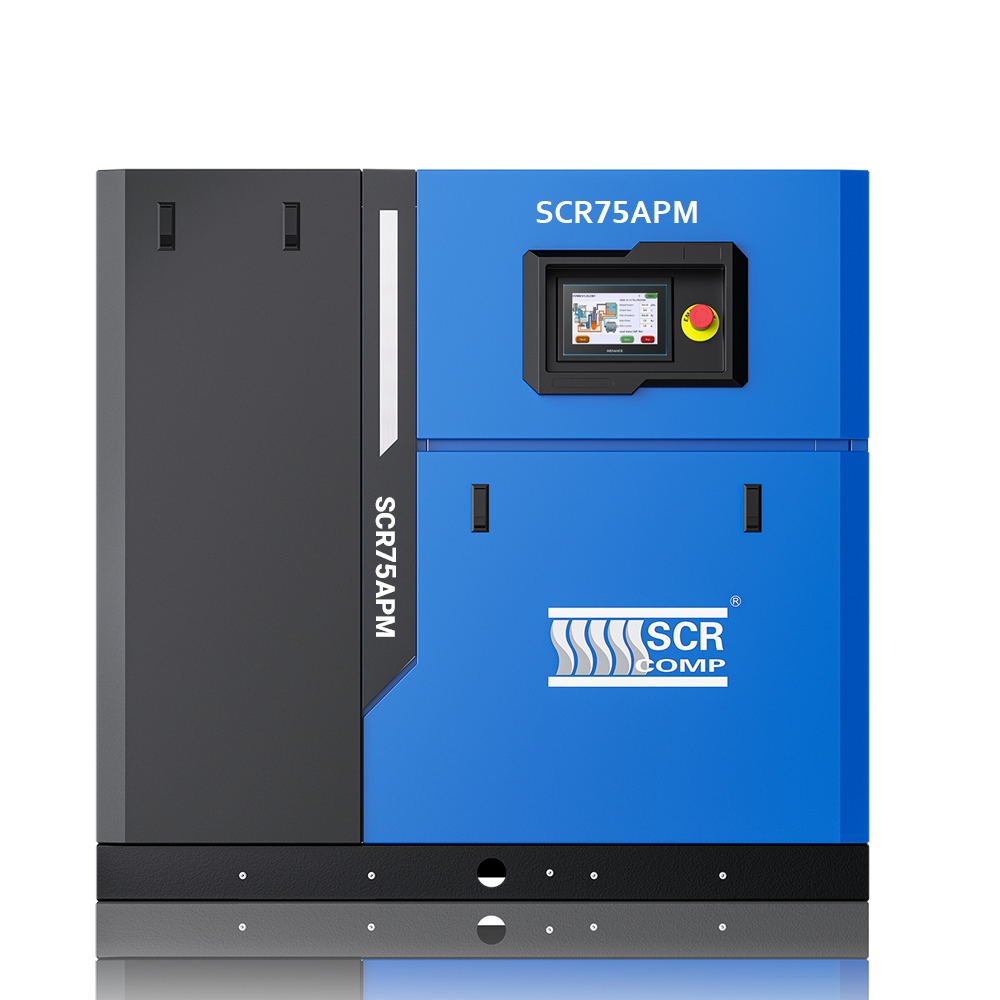

Permanent Magnetic VSD Screw air compressor SCR75APM
The SCR75APM permanent magnet variable speed screw air compressor is designed to provide stable and energy-efficient compressed air for demanding industrial applications. The advanced VSD control system automatically adjusts motor speed according to air demand, reducing energy consumption while maintaining consistent system pressure. This model is suitable for manufacturing plants, CNC machinery, metal processing and automated production lines requiring reliable compressed air performance.
Power range (KW)
7.5–75 kW
Working pressure
7 / 8 / 10 / 12.5 / 15 / 16 bar
Free air delivery
0.5–13.1 m³/min
Technical specification
| Model | KW | HP | Capacity (m3/min) | Pressure (BAR) | Dimension (mm) | Weight (KG) | Size |
|---|---|---|---|---|---|---|---|
| SCR75APM-7 | 55 | 75 | 2.4-10.2 | 7 | 1800×1200×1550 | 1000 | RC 2 |
| SCR75APM-8 | 2.3-10.1 | 8 | |||||
| SCR75APM-10 | 2.1-8.5 | 10 | |||||
| SCR75APM-12.5 | 1.8-7.5 | 12.5 |
Video
