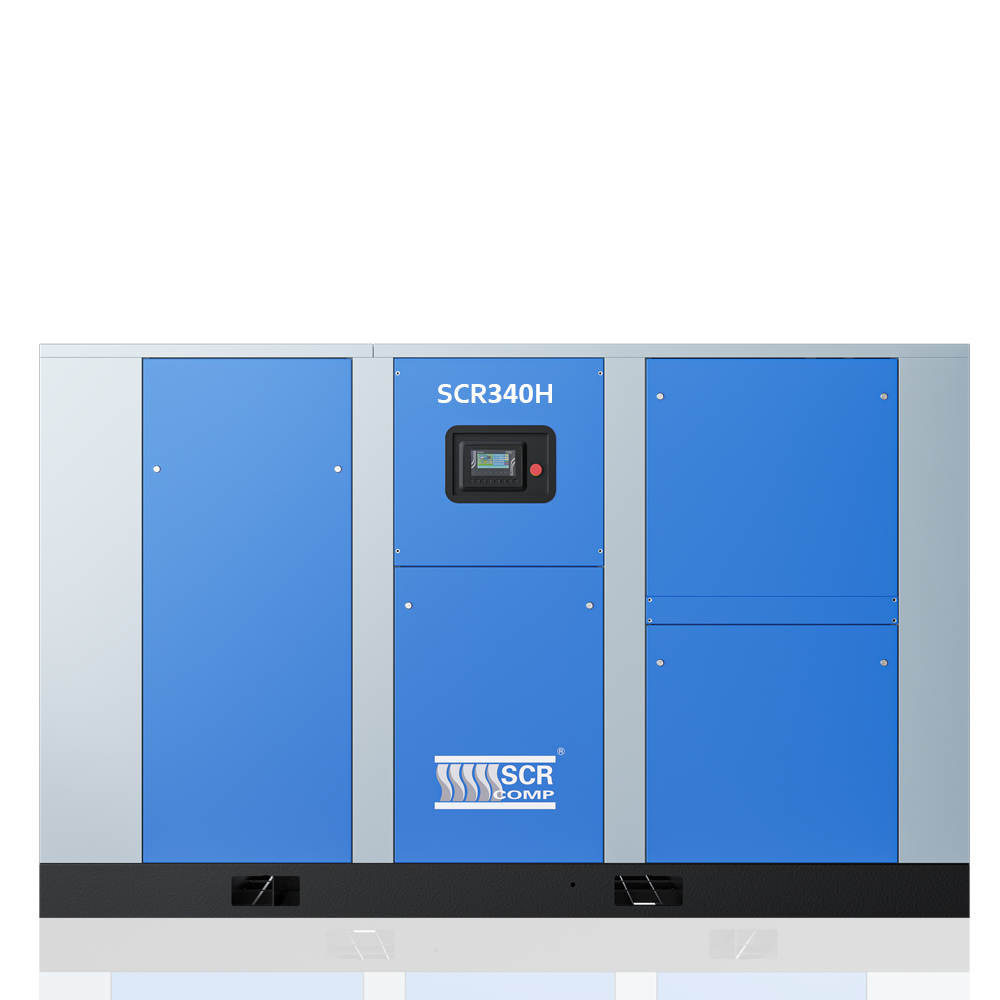

Two stage screw compressor SCR340H
The SCR340H screw air compressor is designed to deliver high-performance compressed air with stable pressure and reliable operation for industrial applications. The optimized airend and advanced control system ensure efficient performance, reduced energy consumption and long service life. This model is suitable for manufacturing plants, metal processing, CNC machinery and other industrial applications requiring continuous compressed air supply.
Power range (KW)
250 kW
Working pressure
7 / 8 / 10 / 12.5 bar
Free air delivery
40.5–51.5 m³/min
Technical specification
| Model | KW | HP | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|---|
| SCR340H | 250 | 340 | 51.5 | 7 | 4000×2200×2300 | 7000 | DN125 |
| 51 | 8 | ||||||
| 46 | 10 | ||||||
| 40.5 | 12.5 |
