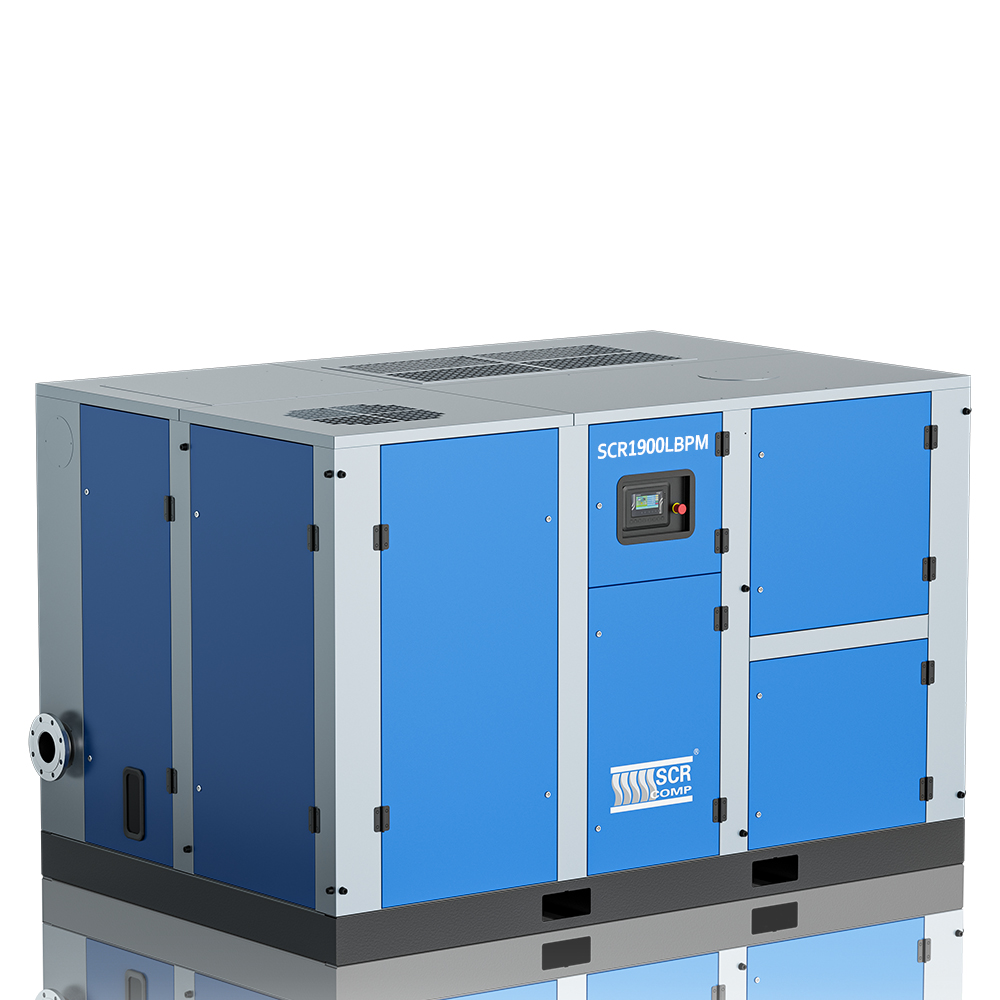

Low pressure Permannent Magnetic VSD screw air compressor SCR1900LBPM
The SCR1900LBPM permanent magnet low-pressure screw air compressor is designed to deliver very large air volumes with excellent energy efficiency for industrial processes requiring stable low-pressure compressed air. Equipped with a high-efficiency permanent magnet motor and advanced control system, the compressor ensures reliable operation, optimized performance and reduced energy consumption. This model is suitable for applications such as pneumatic conveying, cement production, textile manufacturing and other industries requiring continuous low-pressure air supply.
Power range (KW)
160–200 kW
Working pressure
2 / 3 / 4 bar
Free air delivery
16.5–55.0 m³/min
Technical specification
| Model | Power (KW) | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|
| SCR1900LBPM | 160 | 16.5-55.0 | 2 | 4300×2200×2200 | 8000 | DN200 |
| 185 | 3 | 3400×2220×2100 | 6000 | DN150 | ||
| 200 | 4 |
