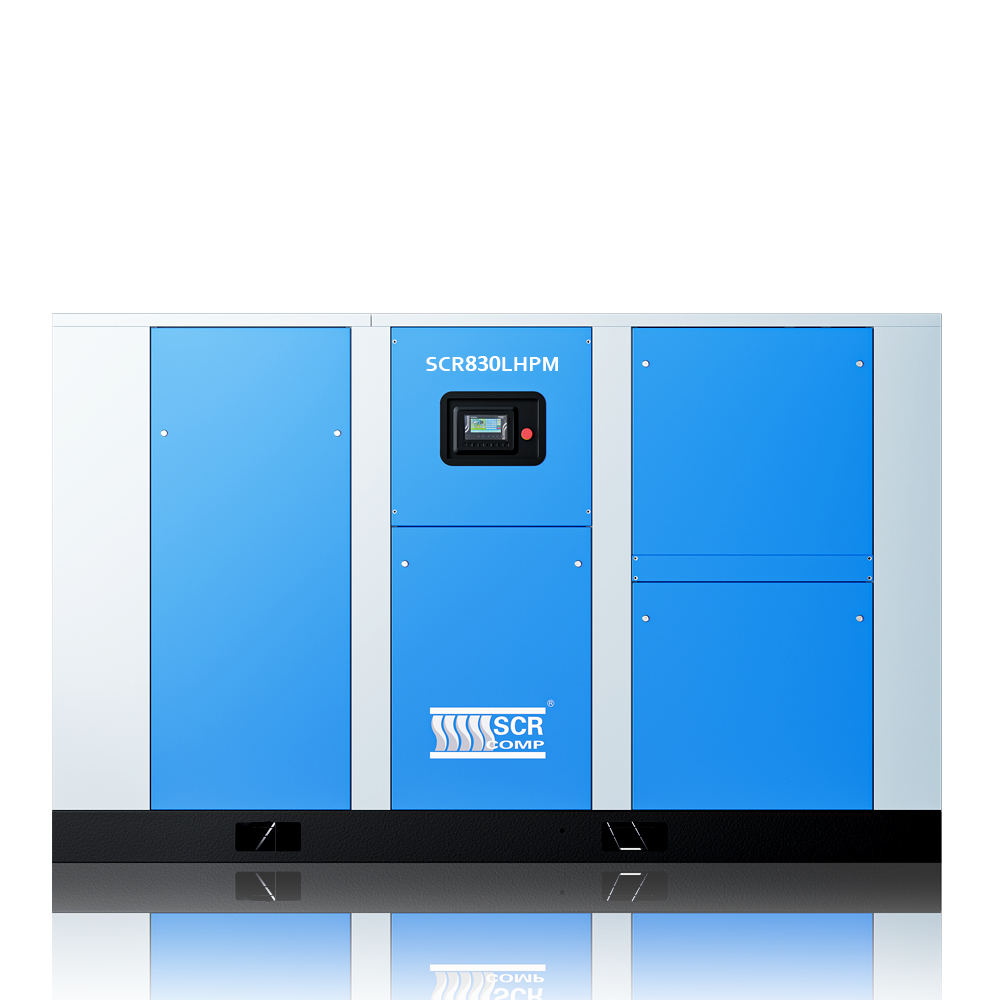

low pressure Two stages screw compressor SCR830LHPM
The SCR830LHPM permanent magnet two-stage low-pressure screw air compressor is designed to deliver high air flow with excellent energy efficiency for industrial processes requiring stable low-pressure compressed air. The advanced two-stage compression technology combined with a high-efficiency permanent magnet motor ensures reduced energy consumption, reliable operation and consistent performance. This model is suitable for applications such as pneumatic conveying, cement production, textile manufacturing and other industries requiring continuous low-pressure air supply.
Technical information
Power range (KW)
90 kW
Working pressure
4.5 / 5.5 bar
Free air delivery
7.1–23.7 m³/min
Technical specification
| Model | Power (KW) | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|
| SCR830LHPM | 90 | 7.1-23.7 | 4.5 | 2900×1850×1950 | 3570 | DN100 |
| 5.5 |
