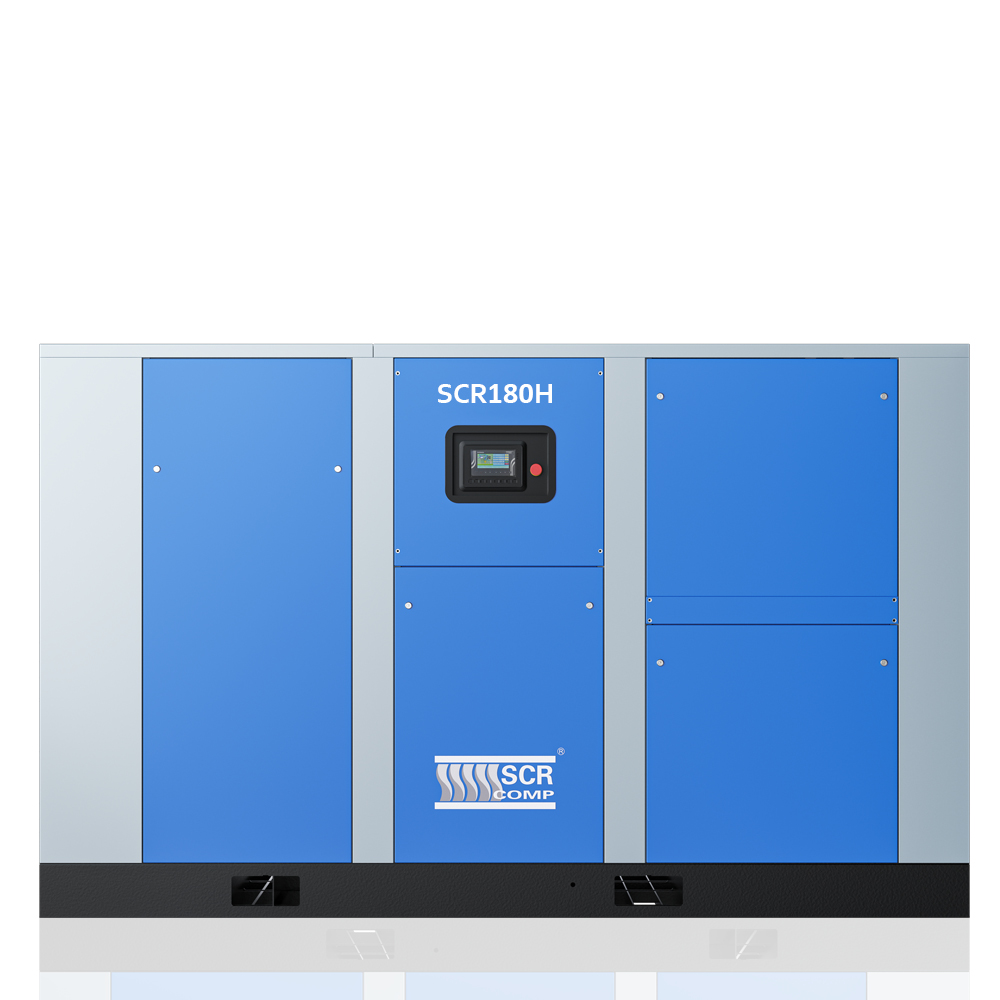

Two stage screw compressor SCR180H
The SCR180H screw air compressor is designed to deliver high-performance compressed air with stable pressure and reliable operation for industrial applications. The optimized airend and advanced control system ensure efficient performance, reduced energy consumption and long service life. This model is suitable for manufacturing plants, metal processing, CNC machinery and other industrial applications requiring continuous compressed air supply.
Power range (KW)
132 kW
Working pressure
7 / 8 / 10 / 12.5 bar
Free air delivery
18.5–28.5 m³/min
Technical specification
| Model | KW | HP | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|---|
| SCR180H | 132 | 180 | 28.5 | 7 | 3400×2100×2000 | 4700 | DN80 |
| 28 | 8 | ||||||
| 22.5 | 10 | ||||||
| 18.5 | 12.5 |
Video
Related products
-
low pressure Two stages screw compressor SCR1900LHPM
Power Range: 200 kWFree Air Delivery: 15.0–50.0 m³/minWorking Pressure: 4.5 / 5.5 bar -
Two stage screw compressor SCR300H
Power Range: 220 kWPower Range (HP): 300 HPFree Air Delivery: 37.5–45.8 m³/minWorking Pressure: 7 / 8 / 10 / 12.5 bar -

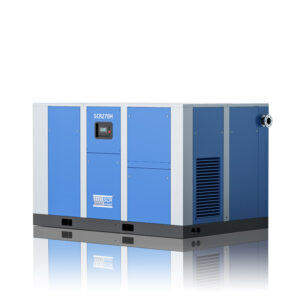

Two stage screw compressor SCR270H
