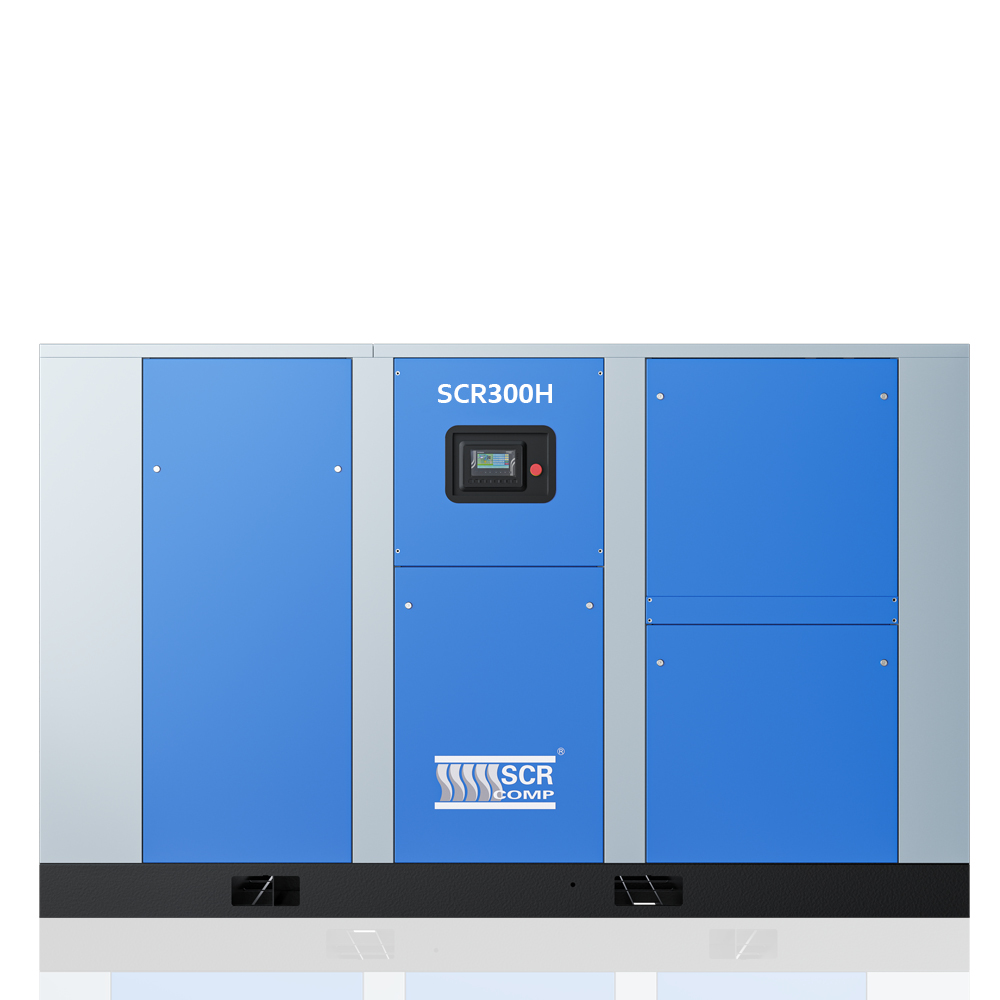

Two stage screw compressor SCR300H
The SCR300H screw air compressor is designed to deliver high-performance compressed air with stable pressure and reliable operation for industrial applications. The optimized airend and advanced control system ensure efficient performance, reduced energy consumption and long service life. This model is suitable for manufacturing plants, metal processing, CNC machinery and other industrial applications requiring continuous compressed air supply.
Power range (KW)
220 kW
Working pressure
7 / 8 / 10 / 12.5 bar
Free air delivery
37.5–45.8 m³/min
Technical specification
| Model | KW | HP | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|---|
| SCR300H | 220 | 300 | 45.8 | 7 | 3400×2200×2100 | 6600 | DN100 |
| 45.5 | 8 | ||||||
| 42 | 10 | ||||||
| 37.5 | 12.5 |
Video
Related products
-
low pressure Two stages screw compressor SCR530LHPM
Power Range: 55 kWFree Air Delivery: 4.5–15 m³/minWorking Pressure: 4.5 / 5.5 bar -

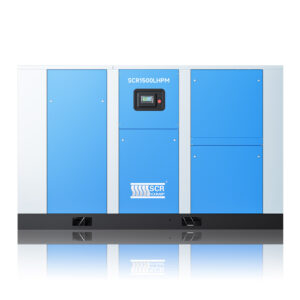

low pressure Two stages screw compressor SCR1500LHPM
