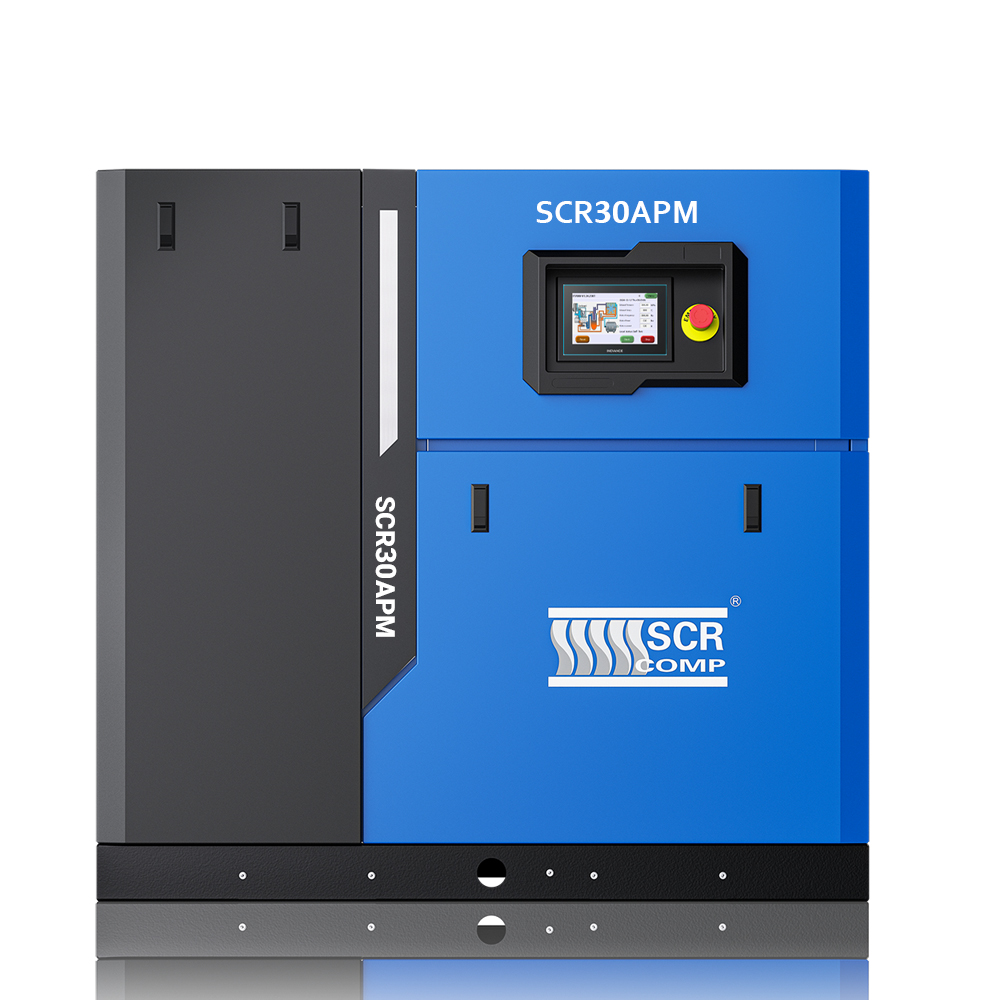

Permanent Magnetic VSD Screw air compressor SCR30APM
The SCR30APM permanent magnet variable speed screw compressor provides high performance and energy efficiency for demanding industrial applications. The intelligent VSD system adjusts motor speed to match air consumption, reducing power usage and ensuring stable pressure output. The compressor is designed for continuous operation in manufacturing plants, machining centers and production facilities.
Power range (KW)
7.5–75 kW
Working pressure
7 / 8 / 10 / 12.5 / 15 / 16 bar
Free air delivery
0.5–13.1 m³/min
Technical specification
| Model | KW | HP | Capacity (m3/min) | Pressure (BAR) | Dimension (mm) | Weight (KG) | Size |
|---|---|---|---|---|---|---|---|
| SCR30APM-7 | 22 | 30 | 0.9-3.45 | 7 | 1200×800×1100 | 350 | RC 1 |
| SCR30APM-8 | 0.85-3.4 | 8 | |||||
| SCR30APM-10 | 0.7-3.0 | 10 | |||||
| SCR30APM-12.5 | 0.65-2.7 | 12.5 | |||||
| SCR30APM-15 | 0.9-1.9 | 15 | |||||
| SCR30APM-16 | 0.85-1.8 | 16 |
