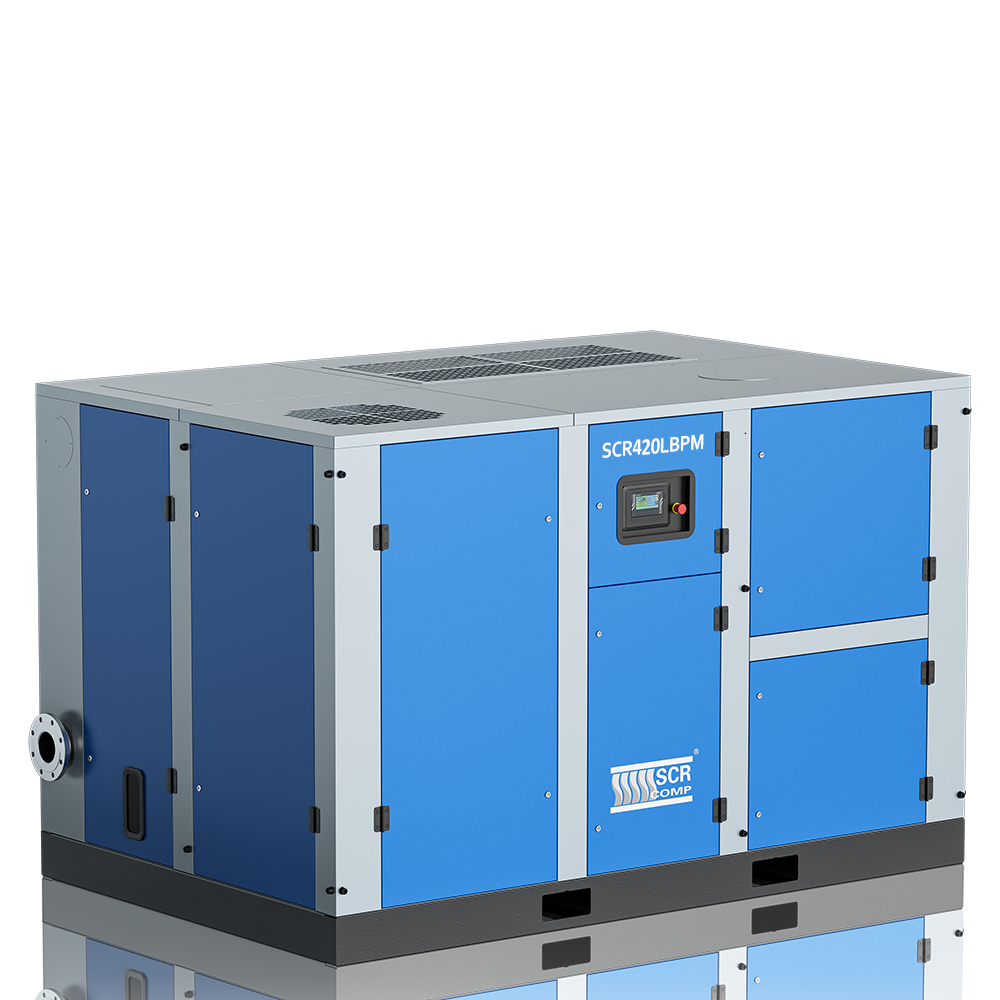

Low pressure Permannent Magnetic VSD screw air compressor SCR420LBPM
The SCR420LBPM permanent magnet low-pressure screw air compressor is designed to deliver high air flow with improved energy efficiency for industrial processes requiring stable low-pressure compressed air. Equipped with a high-efficiency permanent magnet motor and advanced control system, the compressor provides reliable operation, optimized performance and reduced energy consumption. This model is suitable for applications such as pneumatic conveying, cement production, textile manufacturing and other industries requiring continuous low-pressure air supply.
Power range (KW)
37–55 kW
Working pressure
2 / 3 / 4 / 5 bar
Free air delivery
3.6–12.0 m³/min
Technical specification
| Model | Power (KW) | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|
| SCR420LBPM | 37 | 3.6-12.0 | 2-3 | 2400×1760×1700 | 2500 | DN80 |
| 45 | 4 | |||||
| 55 | 5 |
Video
Related products
-

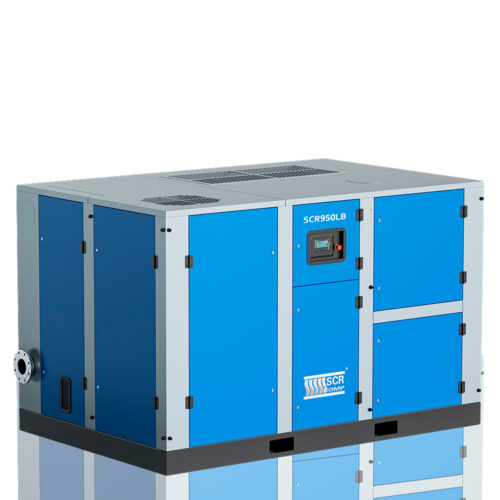

Low pressure Permannent Magnetic VSD screw air compressor SCR950LB
