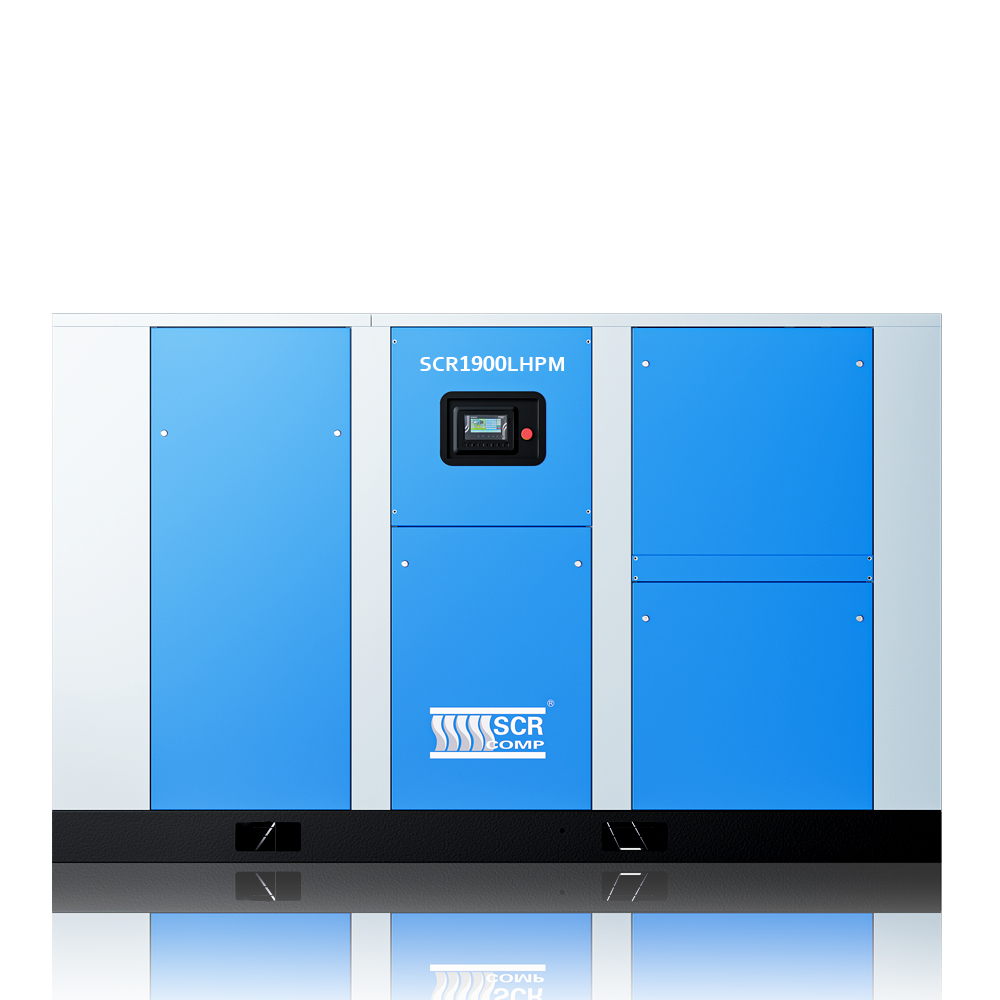

low pressure Two stages screw compressor SCR1900LHPM
The SCR1900LHPM permanent magnet two-stage low-pressure screw air compressor is designed to deliver high air flow with excellent energy efficiency for industrial applications requiring stable low-pressure compressed air. The advanced two-stage compression technology combined with a high-efficiency permanent magnet motor ensures reduced energy consumption, reliable operation and consistent performance. This model is suitable for applications such as pneumatic conveying, textile production, food processing and other industries requiring continuous low-pressure compressed air.
Power range (KW)
200 kW
Working pressure
4.5 / 5.5 bar
Free air delivery
15.0–50.0 m³/min
Technical specification
| Model | Power (KW) | Capacity (m³/min) | Pressure (Bar) | Dimension (mm) | Weight (kg) | Outlet Size |
|---|---|---|---|---|---|---|
| SCR1900LHPM | 200 | 15.0-50.0 | 4.5 | 3300×2200×2250 | 5800 | DN150 |
| 5.5 |
