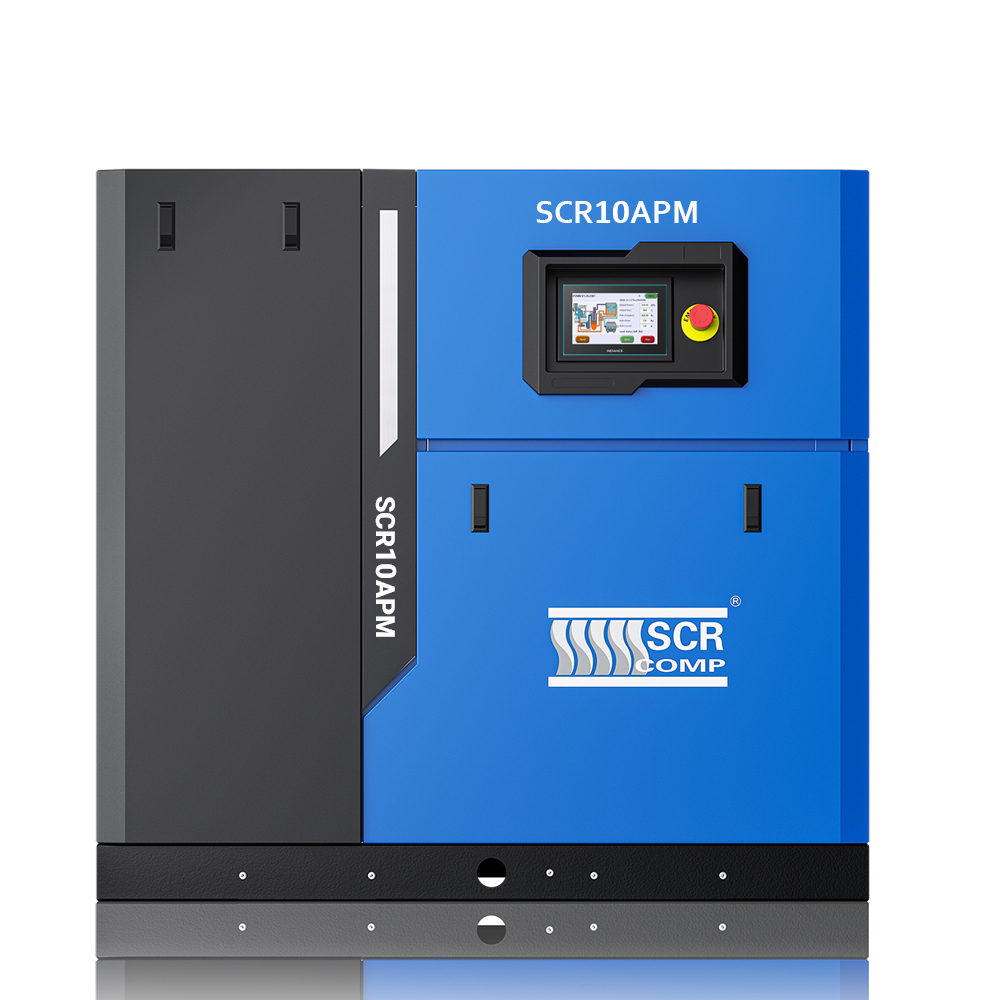

Permanent Magnetic VSD Screw air compressor SCR10APM
The SCR10APM permanent magnet variable speed screw air compressor is designed for stable and energy-efficient compressed air supply in industrial environments. The advanced VSD control system automatically adjusts motor speed according to air demand, reducing energy consumption and maintaining consistent system pressure. This model is suitable for workshops, CNC machines, manufacturing equipment and small to medium industrial applications.
Power range (KW)
7.5–75 kW
Working pressure
7 / 8 / 10 / 12.5 / 15 / 16 bar
Free air delivery
0.5–13.1 m³/min
Technical specification
SCR10APM
| Model | KW | HP | Capacity (m3/min) | Pressure (BAR) | Dimension (mm) | Weight (KG) | Size |
|---|---|---|---|---|---|---|---|
| SCR10APM-7 | 7.5 | 10 | 0.45-1.15 | 7 | 750×650×890 | 230 | RC 1/2 |
| SCR10APM-8 | 0.43-1.1 | 8 | |||||
| SCR10APM-10 | 0.57-0.95 | 10 |
